ZA11 Pavilion


Type Temporary Pavilion
Location Cluj | Romania
Stage Completed
Date 4th – 7th May 2011
Design Dimitire Stefanescu, Patrick Bedarf, Bogdan Hambasan

Intro The project started out as an ambitious student-powered endeavor to design and fabricate at a 1:1 scale the flagship pavilion for the ZA11 Speaking Architecture event in Cluj, Romania. While at the same time integrating into its historically-charged context, the design (which was elaborated to a concept stage during a week-long workshop) boasts a strong representational power which was much needed in order to fulfill its main goal: attracting passers-by to the event. At the same time, the object, through its tectonic characteristics, tries to make legible the new ontology which is slowly defined by computational architecture and thus becomes a showcase for the design processes empowered by digital tools.

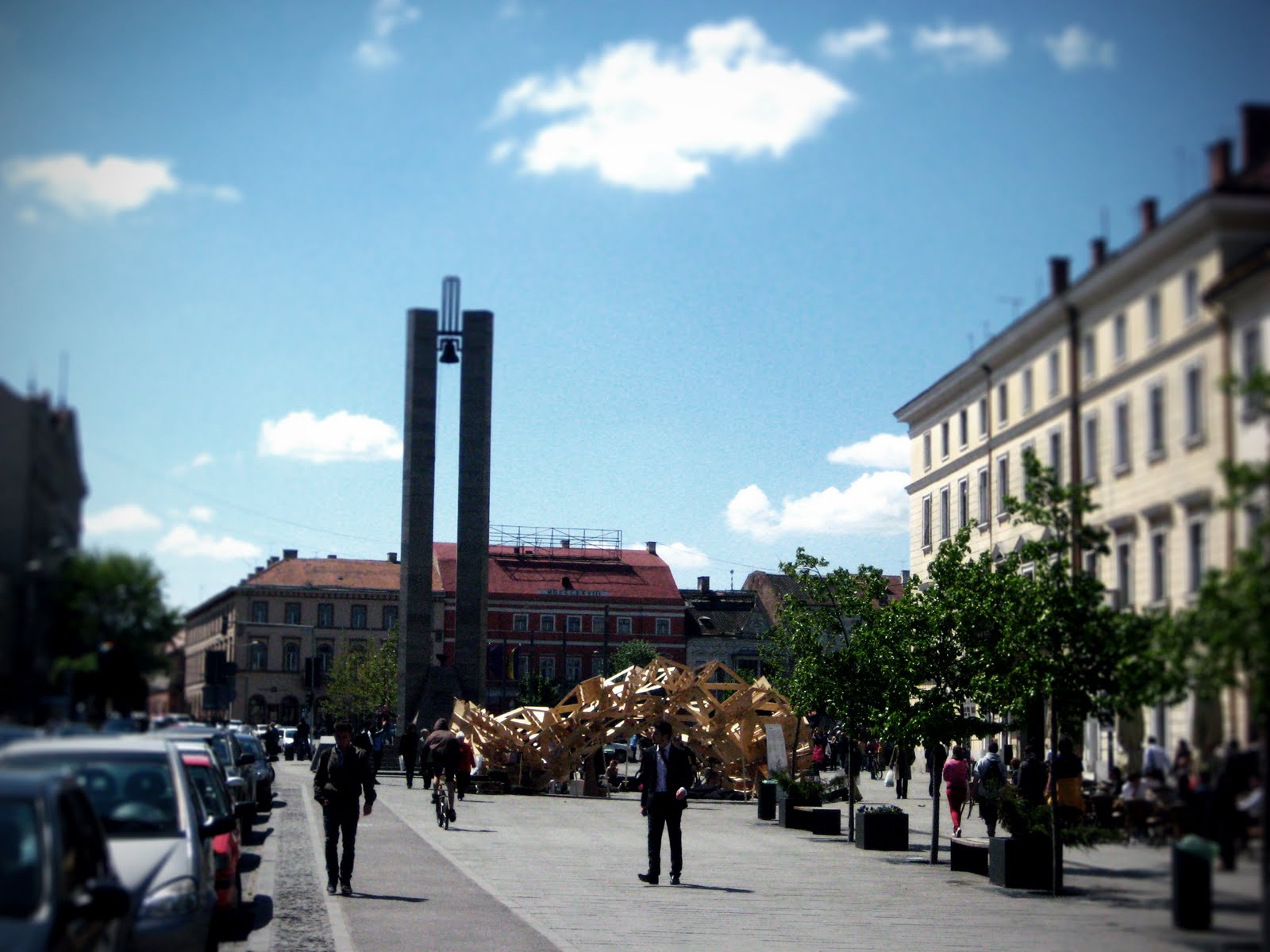

00 - IMG_5356 - patrick-bedarf

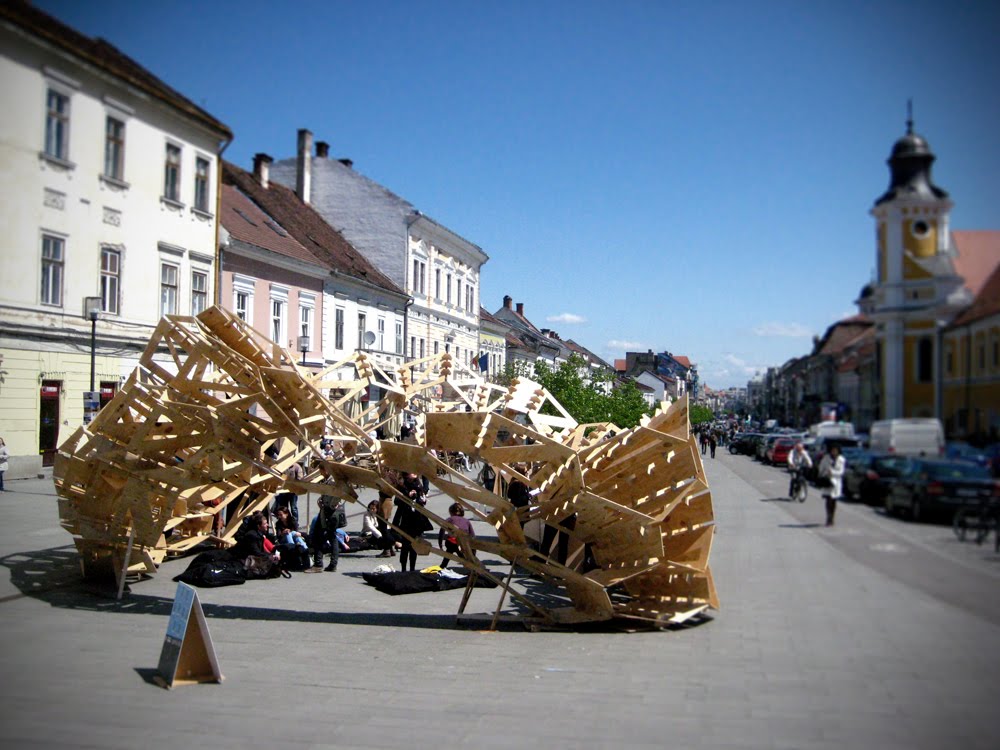

07 - IMG_5348 - patrick-bedarf

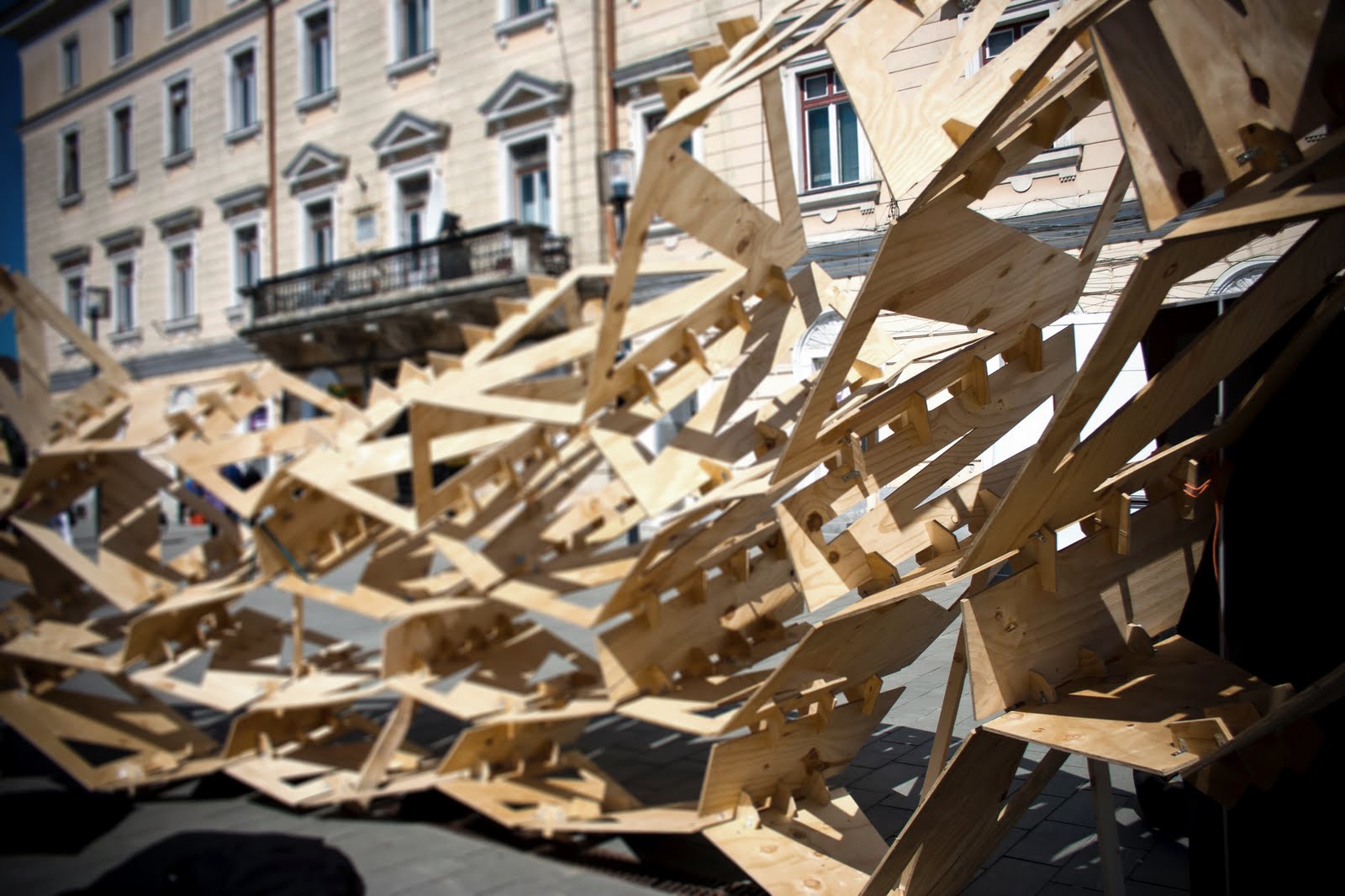

04 - 110508 day_img2-danielbondas

Process The design was elaborated during a week-long parametric design workshop (CLJ02) specifically geared towards its production which, in theory, was seen as a continuation of the previous event (CLJ01: Parametric Desing Workshop, organized by Ionut Anton and Dimitrie Stefanescu). We were faced with the harsh requirements of creating an actually working design with just the material and tools available from sponsors (over which we hardly had any choice) while at the same time fitting costs inside a budget dwarfed by its expectations. Subsequently, the creative exploration agenda was constrained to a relatively limited approach which, most importantly, was scalable in terms of materials and fabrication techniques. The realization of the design was made possible by advanced use of parametric design techniques (using Rhino+Grasshopper), with the help of which the whole process was controlled from exact geometry generation to piece labeling, assembly logic, actual fabrication (CNC milling) and, of course, cost control.

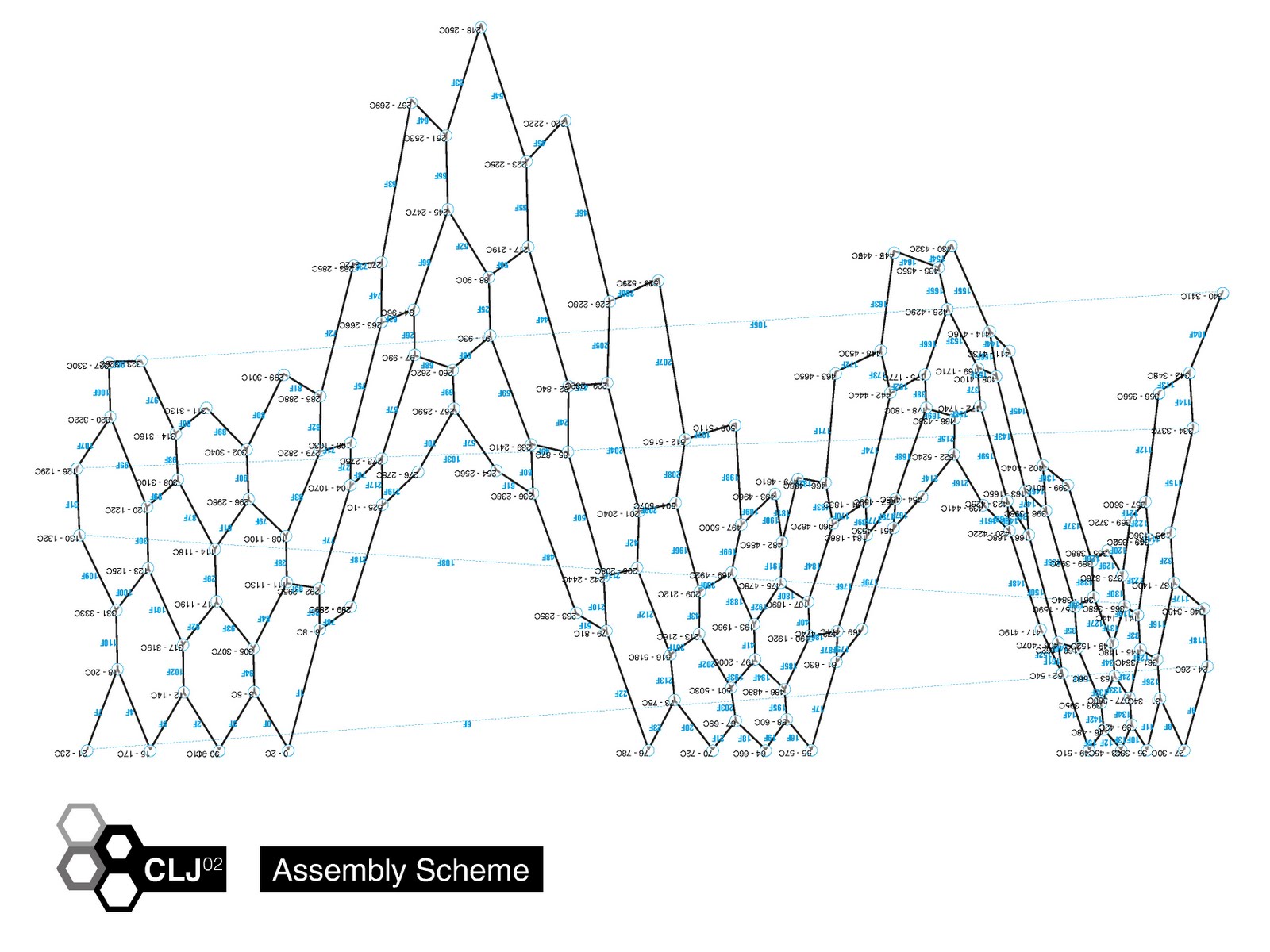

110627 hex-infograpics_Page_4

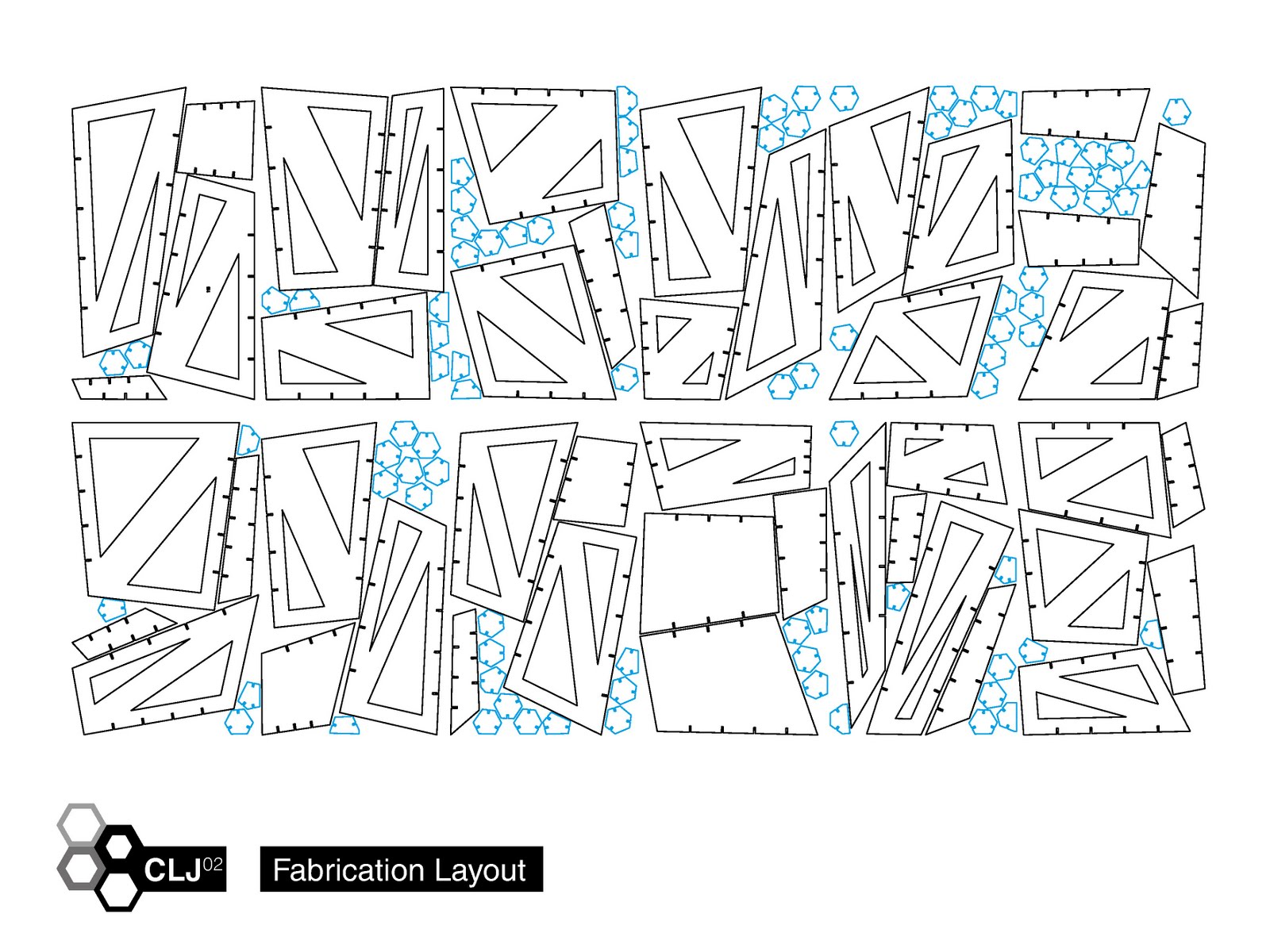

110627 hex-infograpics_Page_3

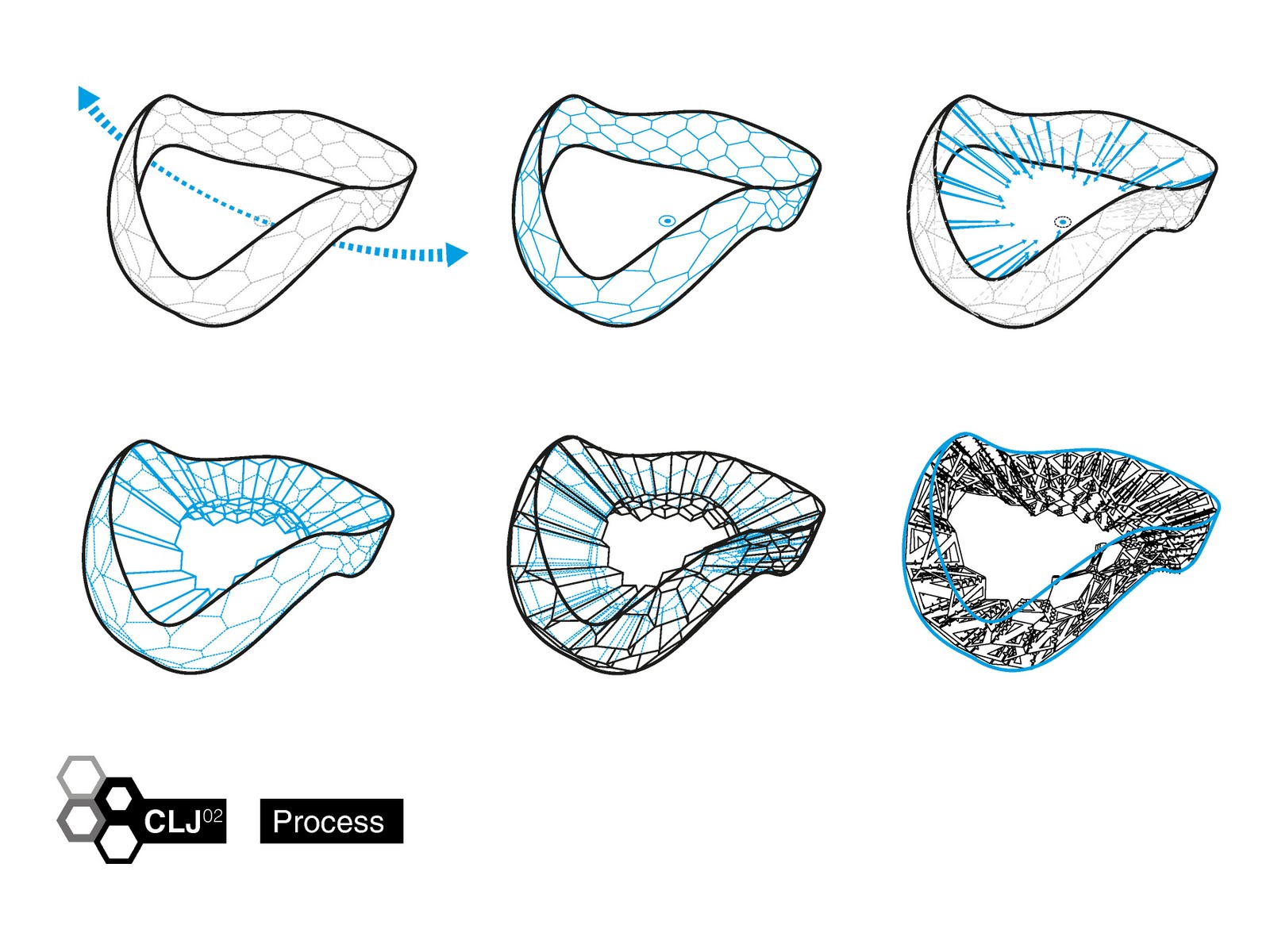

110627 hex-infograpics_Page_1

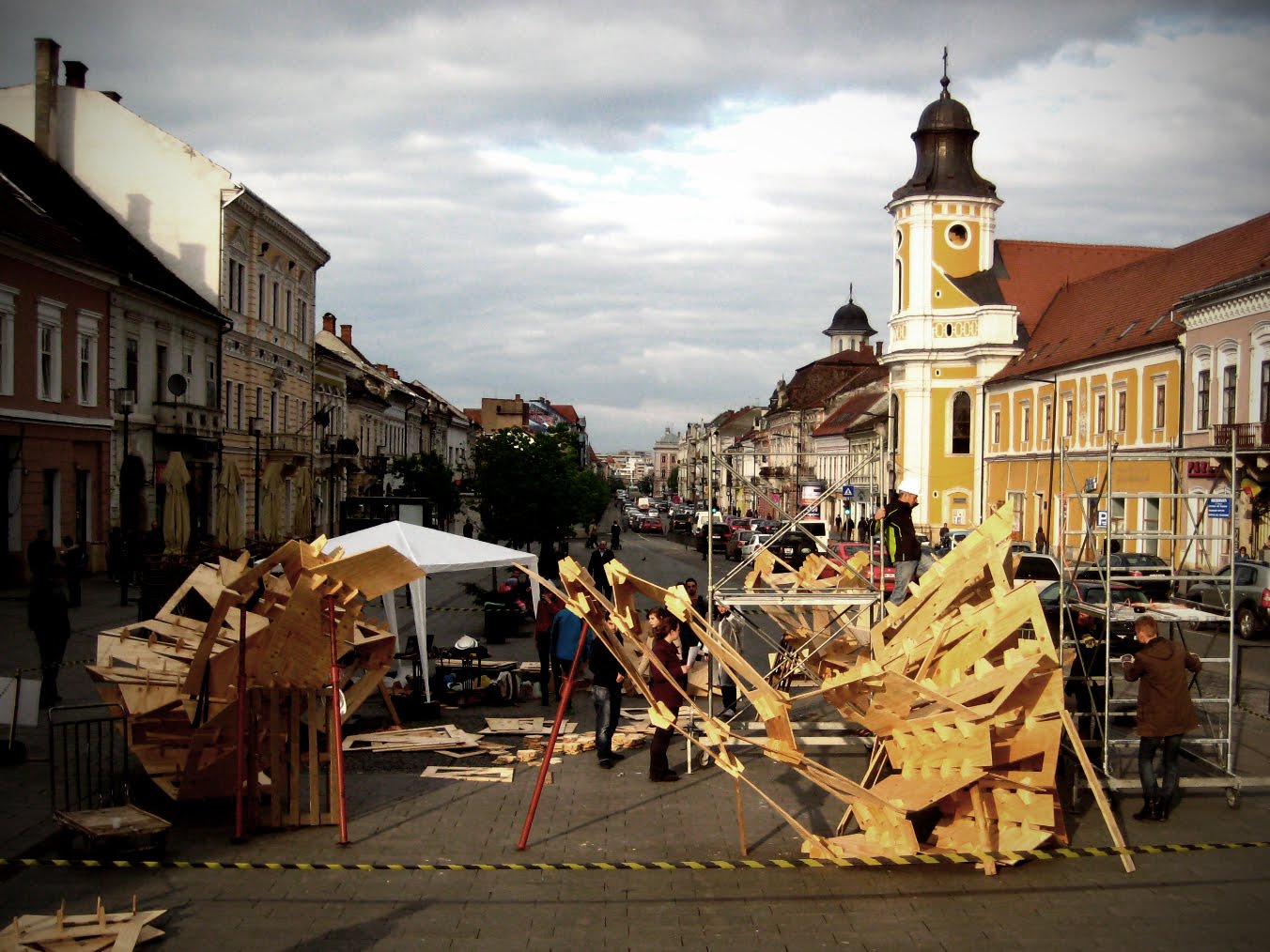

Execution As an educational exercise it completed the design phase and proved to be invaluable in terms of actually understanding and working with the constraints encountered in real-life. Varying material thickness (and subsequent extra flexibility and less joint stiffness), rain and wind posed many challenges which had to be resolved on-site as quickly as possible so as to meet the assembly deadline.


Conclusions The ZA11 Pavilion emerged as a powerful urban attractor which managed to engage the local society on all levels. Interest was aroused in both young and senior citizens, both professionals and non-architects by the completed pavilion as well as during the act of its construction, thus proving to be more than an indifferent temporary shelter. Furthermore, it successfully provided a flexible and comfortable space for the different events pertaining to the event (temporary bookshop, open-air cinema, tea party, jam sessions and a small concert + sleeping in the sun) to unfold.

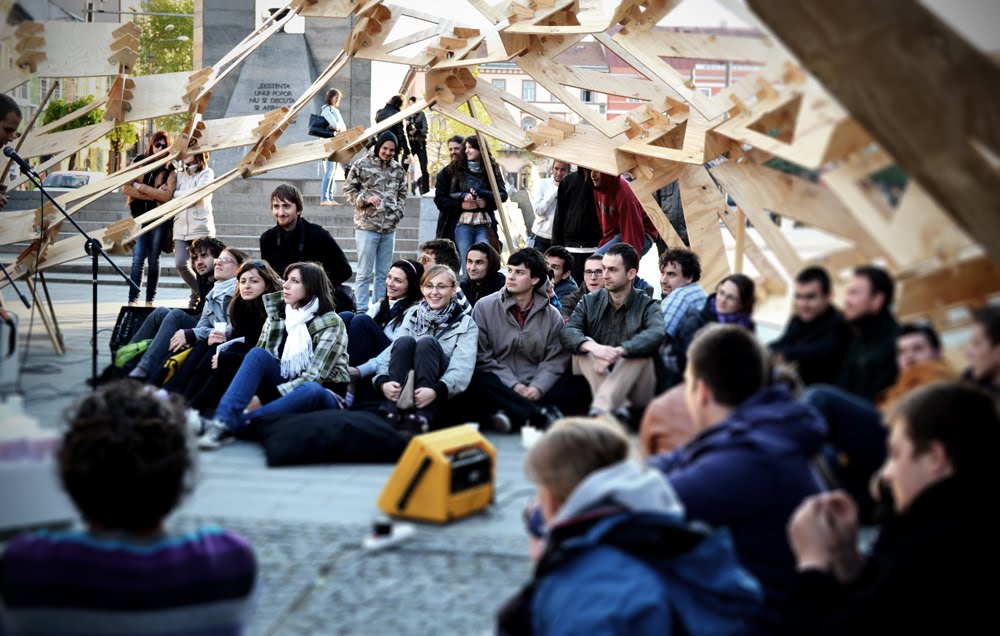

06 - 110508 day_img-georgeta-macovei

The first of its kind in Romania, the ZA11 Pavilion can be definitively called a successful architectural experiment. Designed and assembled only by students (with little preliminary outside help), it successfully met all expectations and proved to be an invaluable experience in blending avant-garde design techniques on a relatively large scale with a low budget and a skeptical professional context.

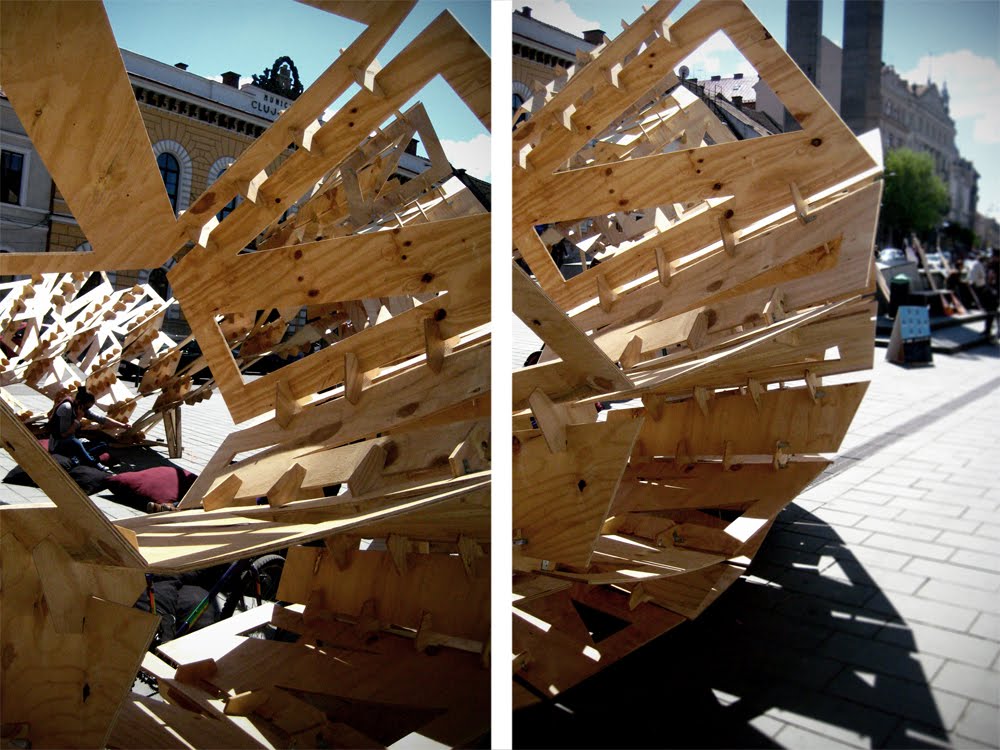

XX - patrick-bedarf

Workshop Team Ciprian Colda, Anamaria Androne, Razvan Sencu, Madalin Gheorghe | Assembly Army Bogdan Badila, Vlad Pop, Georgiana Hlihor, Denisa Lula, Robert Veber, Zoltan Vaida, Imre Vekove, Ciprian Colda, Mihai Pascalau, Calin Negret, Bogdan Borbei, Iustin Nechiti, Dan Ioanici, Razvan Luca, Stefan Grosariu, Ioana Suceava, Alexandra Man, Andreea Darac, Irina Mates, Oana Bogatan, Andrei Varga, Radu Badila, Elza Sandor, Alex Greceniuc, Oana Matei, Alex Vladovici, Marcel Oprean, Ioan Pop, Vlad Rusu, Ioana Tomoioaga | Photographs by Patrick Bedarf, Georgiana Hlihor, Daniel Bondas, Georgeta Macovei | Text by Dimitrie Stefanescu

Special thanks to Mircea Stefanescu, Dan Brasoveanu [Graphtec], Nejur Andrei, Rares Dragan [Atelier RVD]

Sponsors Graphtec, Holver
